OMAR STAR Hydraulic Pullers and Pushers - Authorized Dealer
PRANAM Engineering supports maintenance teams by recommending the correct capacity of OMAR STAR Hydraulic Pullers, designed for safe and efficient removal of bearings, gears, couplings and pulleys in heavy industrial applications.
We are a trusted sales and service partner since 20+ years for one of the best hydraulic puller manufacturer in India. We are proud of the legacy.

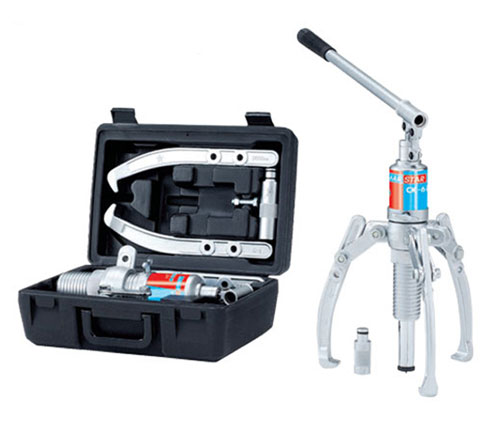

OMAR STAR Hydraulic Pullers Standard
Trusted Users: Soda-Ash Plants, Fertilizer Plants, Cement Plants, Elevator Manufacturers
Self contained Hydraulic Pump & Puller, Spring Return Hydraulic Piston
Heat treated alloy steel forged jaws
2/3 way combination puller head
Safety valve minimizes the risk of the puller overload by limiting the applied force.
Output | Model | Reach | Spread | Stroke |
4 Tons | CK-6SD | 165 mm | 30-200/260 mm | 55-105 mm |
6 Tons | CK-6IN | 165 mm | 30-200/260 mm | 82-130 mm |
6 Tons | CK-6INB (Long and Short Jaws) | 165/195 mm | 30-200/260 mm | 82-180 mm |
6 Tons | CK-6INL | 195 mm | 30-200/300 mm | 82-180 mm |
8 Tons | CK-8IN | 210 mm | 30-250/355 mm | 82-160 mm |
8 Tons | CK-8INB (Long and Short Jaws) | 210/240 mm | 30-300/380 mm | 82-240 mm |
8 Tons | CK-8INL | 240 mm | 30-300/380 mm | 82-180 mm |
15 Tons | CK-10IN | 240 mm | 50-280/380 mm | 82-180 mm |
15 Tons | CK-10INB (Long and Short Jaws) | 240/320 mm | 50-350/410 mm | 82-280 mm |
15 Tons | CK-10INL | 320 mm | 50-350/410 mm | 82-280 mm |

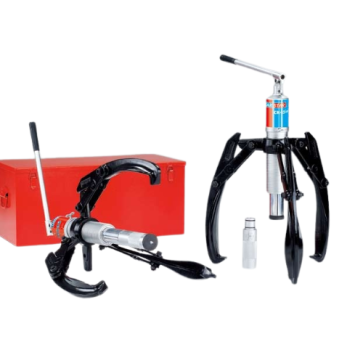

OMAR STAR Hydraulic Pullers Cobra Jaws
Trusted Users: Soda-Ash Plants, Fertilizer Plants, Cement Plants, Elevator Manufacturers
Self contained Hydraulic Pump & Puller, Spring Return Hydraulic Piston
LIFETIME WARRANTY ON COBRA JAWS
Safety valve minimizes the risk of the puller overload by limiting the applied force.
Output | Model | Reach | Spread | Stroke |
10 Tons | CK-6IN Extra | 195 mm | 30-250/310 mm | 82-130 mm |
10 Tons | CK-6INL Extra | 250 mm | 30-280/340 mm | 82-180 mm |
10 Tons | CK-6INB Extra (Long and Short Jaws) | 195/250 mm | 30-280/340 mm | 82-180 mm |
12 Tons | CK-8IN Extra | 240 mm | 30-300/370 mm | 82-160 mm |
12 Tons | CK-8INL Extra | 280 mm | 30-330/400 mm | 82-240 mm |
12 Tons | CK-8INB Extra (Long and Short Jaws) | 240/280 mm | 30-330/400 mm | 82-240 mm |
20 Tons | CK-11IN | 275 mm | 50-360/430 mm | 82-180 mm |
20 Tons | CK-11INL | 330 mm | 50-380/450 mm | 82-280 mm |
20 Tons | CK-11INB (Long and Short Jaws) | 275/330 mm | 50-380/450 mm | 82-280 mm |
25 Tons | CK-12IN | 315 mm | 50-410/480 mm | 110-220 mm |
25 Tons | CK-12INL | 380 mm | 50-440/540 mm | 110-330 mm |
25 Tons | CK-12INB (Long and Short Jaws) | 315/380 mm | 50-440/540 mm | 110-330 mm |
30 Tons | CK-15IN | 405 mm | 100-540/610 mm | 110-260 mm |

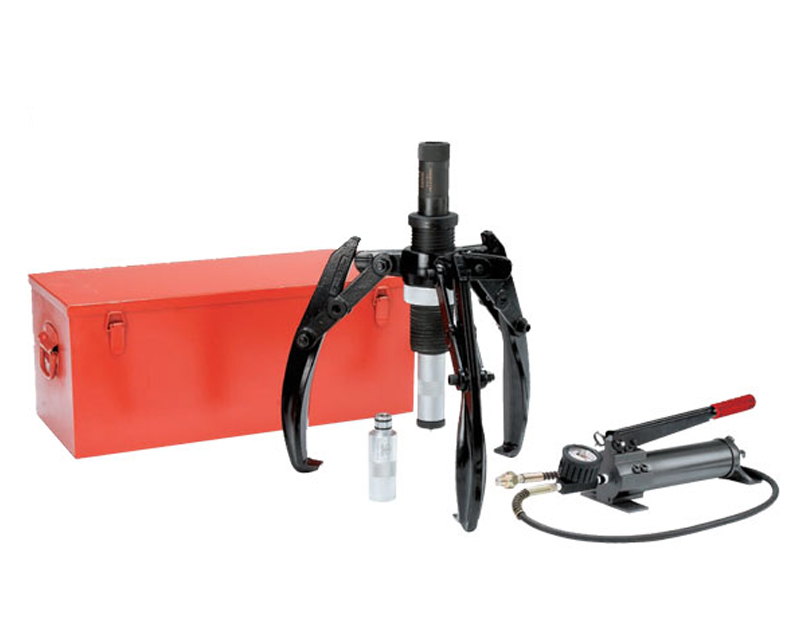

OMAR STAR Separate Type Hydraulic Pulers
Trusted Users: Soda-Ash Plants, Fertilizer Plants, Cement Plants, Elevator Manufacturers
Separate pumps with pressure gauge to monitor the operation
Capacity Ranging from 15 Ton to 50 Ton
Heat treated alloy steel forged jaws.
2/3 way combination puller head.
Lifetime warranty for COBRA Jaws*
Integral safety release valve.
Spring return hydraulic piston.
Bright chrome finish to resist corrosion.
Special adapters to increase stroke and spread.

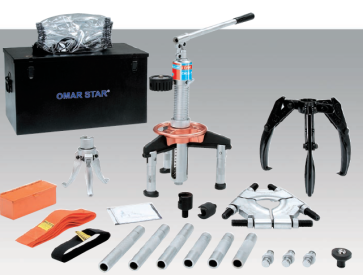

Puller Accessories and Tri-Section Plate
Trisection plates are designed for use in combination with three-armed pullers.
Trisection construction divides force equally and minimizes shearing force.
Special wedge shape design allows the plates to be easily inserted between the bearing and the shoulder on the shaft.
Available for bearings, triangle pulleys, gears and so on. Available in a wide range, covering the most common shaft sizes.
Frequently asked questions
We evaluate the bearing outer diameter, shaft fit tolerance and expected interference before recommending puller capacity. This ensures sufficient extraction force without overstressing the puller or machine components.
Hydraulic pullers apply controlled and evenly distributed force, reducing sudden shock loads that may damage shafts or bearings during removal.
Damage often occurs due to uneven pulling force, incorrect jaw positioning or excessive hammering. Using hydraulic pullers ensures controlled extraction and prevents shaft scoring.
Yes. OMAR STAR hydraulic pullers are commonly used for removing gears, couplings and pulleys where high interference fits require controlled extraction force.
